Tell me more about the Julianne Kitchen Plan

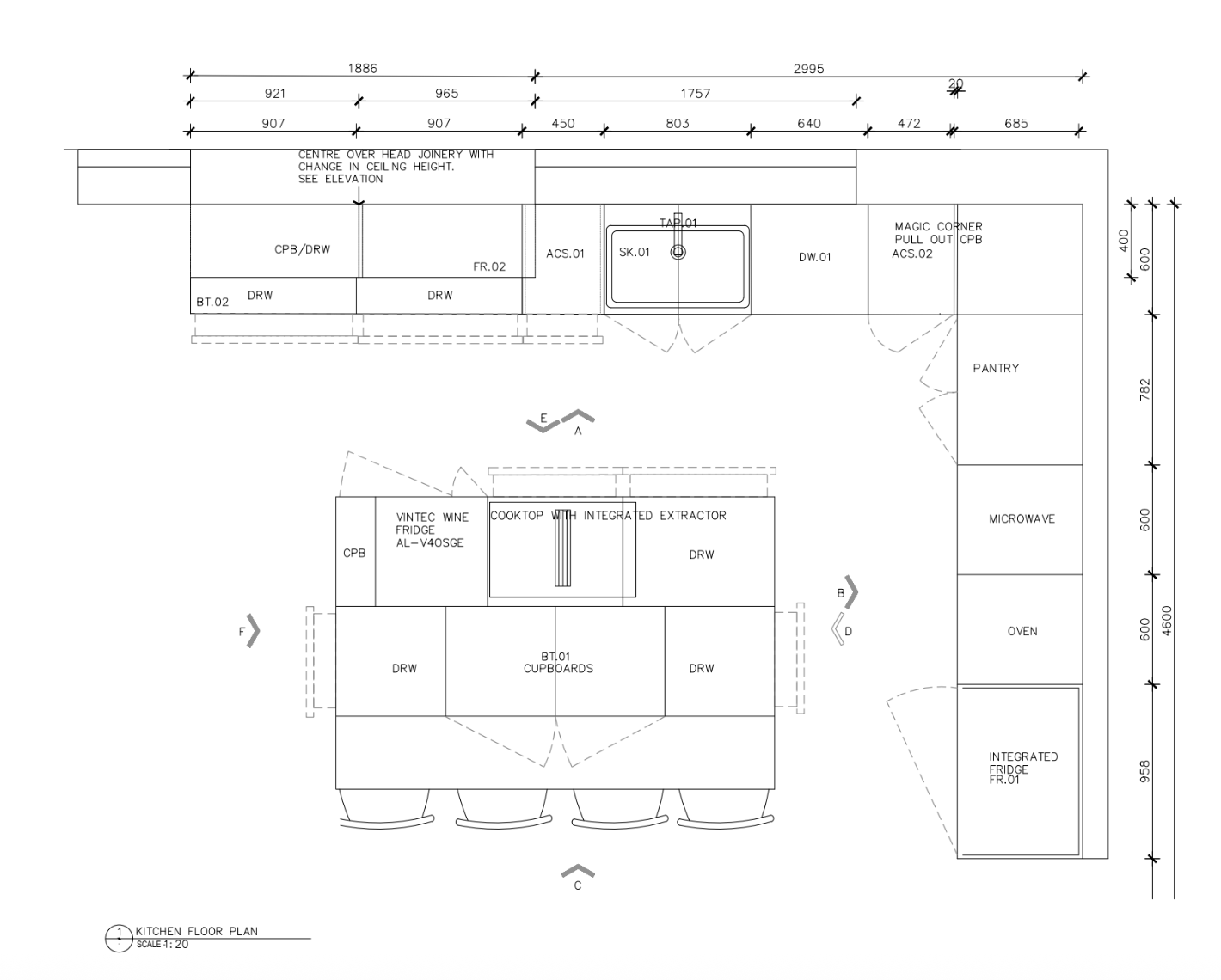

The Julianne Kitchen is an L-shaped layout centred around a generous island, creating a practical and social hub in the middle of the room.
The island includes an integrated cooktop, wine fridge and seating for four, with additional storage tucked behind the barstools so no space is wasted.
The L-shaped cabinetry makes the most of the surrounding walls and creates clear zones for different tasks. The integrated fridge sits alongside the built-in oven and microwave, forming a dedicated cooking and food preparation area, while the sink and dishwasher are positioned together to make clean-up simple and efficient.
In the corner, tall joinery conceals a bi-fold appliance cupboard. This allows everyday appliances such as the toaster, kettle or coffee machine to stay plugged in and ready to use, while still being hidden away when not needed — keeping the main benchtops clear and uncluttered.
The existing plan measures: 486 × 456cm but don’t forget this is easily adjusted for your space using the CAD Drawing file.
-
✔ Fully dimensioned Kitchen with all elevations
✔ Detailed cabinetry layouts
✔ Appliance and fixture positioning
✔ Builder-ready drawing set in PDF format
✔ Fully editable CAD (DWG) file
✔ Immediate Access
✔ Globally Applicable + Adaptable
✔ Designed by Practicing Designers
This isn’t a watered-down version — it’s the exact documentation created by our architects and designers, ready for your draftsperson or builder to adapt to your site.
The Designory’s collection of A Lister Plans give you a fully resolved set of working drawings, including scaled floor plans, elevations, cabinetry details and an editable CAD (DWG) file.
They’re designed to help your builder and trades understand exactly what’s intended, reducing guesswork, last-minute decisions and costly changes on site. Not just a concept — a builder-ready starting point you can adapt for your own home.
-
Save time — skip the overwhelm of designing kitchen spaces from scratch
Save money — get professional-level kitchen design without custom design fees
Build with confidence — layouts proven to flow and function beautifully
Customise with ease — edit the included CAD file for site-specific tweaks
Real design, ready to build.
-
Standard purchase includes a limited, non-transferable licence for personal use only. Commercial licensing is available by application. Learn more below or contact [email protected]
© The Designory Pty Ltd — This document is licensed for personal use only and must be reviewed, adapted and approved by appropriately qualified professionals for your specific site, project and current regulatory requirements before use for construction or approval; The Designory is not the designer of record and, to the maximum extent permitted by law, accepts no liability for its use or the resulting built outcome.
-
The included CAD file allows you to adjust dimensions to suit your footprint.
KITCHEN measuring 486 × 456cm
