The SCARLETT Ensuite Bathroom Plan

$135.00

The SCARLETT Ensuite Bathroom Plan is part of our A Lister Collection of Plans. It includes the Editable CAD (DWG) + Builder-Ready Joinery Drawings

A professionally designed ensuite bathroom layout delivered as editable CAD (DWG) files and builder-ready renovation drawings — created to streamline your build, reduce costly variations and eliminate documentation guesswork.

Instant Digital Download

✔ PDF + Editable DWG file
✔ Scaled floor plans + internal elevations
✔ Suitable for renovations and new builds
✔ Metric-based, adaptable internationally

The SCARLETT Ensuite Bathroom Plan is part of our A Lister Collection of Plans. It includes the Editable CAD (DWG) + Builder-Ready Joinery Drawings

A professionally designed ensuite bathroom layout delivered as editable CAD (DWG) files and builder-ready renovation drawings — created to streamline your build, reduce costly variations and eliminate documentation guesswork.

Instant Digital Download

✔ PDF + Editable DWG file
✔ Scaled floor plans + internal elevations
✔ Suitable for renovations and new builds
✔ Metric-based, adaptable internationally

Tell me more about the Scarlett Ensuite Plan

The Scarlett Ensuite is designed to make clever use of a space with a double shower and a double vanity.

The vanity joinery and shaving cabinet also maximises on storage in this more compact ensuite space.

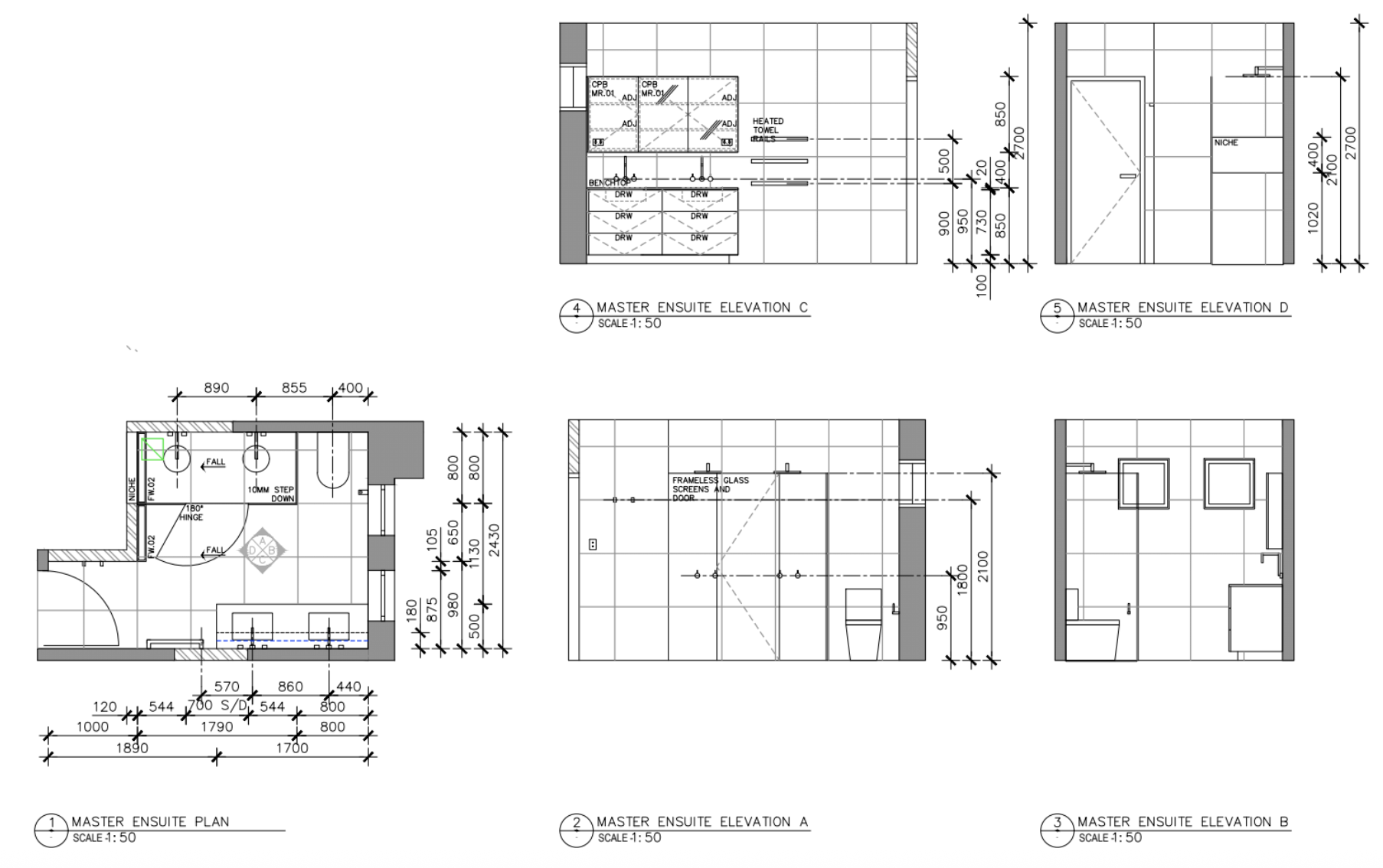

The existing plan measures: 259 × 243cm but don’t forget this is easily adjusted for your space using the CAD Drawing file.

  • ✔ Fully dimensioned bathroom with all elevations

    ✔ Detailed cabinetry layouts

    ✔ Fixture positioning

    ✔ Builder-ready drawing set in PDF format

    ✔ Fully editable CAD (DWG) file

    ✔ Immediate Access

    ✔ Globally Applicable + Adaptable

    ✔ Designed by Practicing Designers

    This isn’t a watered-down version — it’s the exact documentation created by our architects and designers, ready for your draftsperson or builder to adapt to your site.

    The Designory’s collection of A Lister Plans give you a fully resolved set of working drawings, including scaled floor plans, elevations, cabinetry details and an editable CAD (DWG) file.

    They’re designed to help your builder and trades understand exactly what’s intended, reducing guesswork, last-minute decisions and costly changes on site. Not just a concept — a builder-ready starting point you can adapt for your own home.

    • Save time — skip the overwhelm of designing bathroom spaces from scratch

    • Save money — get professional-level kitchen design without custom design fees

    • Build with confidence — layouts proven to flow and function beautifully

    • Customise with ease — edit the included CAD file for site-specific tweaks

    Real design, ready to build.

  • Standard purchase includes a limited, non-transferable licence for personal use only. Commercial licensing is available by application. Learn more below or contact [email protected]

    © The Designory Pty Ltd — This document is licensed for personal use only and must be reviewed, adapted and approved by appropriately qualified professionals for your specific site, project and current regulatory requirements before use for construction or approval; The Designory is not the designer of record and, to the maximum extent permitted by law, accepts no liability for its use or the resulting built outcome.

  • The included CAD file allows you to adjust dimensions to suit your footprint.

    • ENSUITE measuring 259 × 243cm
