18.397m Length x 10.911m Width

7.95m Building Height.

GROUND FLOOR AREA 90.1m2

FIRST FLOOR AREA 81.4m2

TOTAL FLOOR AREA 171.5m2 Plus Garage 40m2

The Complete Home Plan Set Every plan you need to design, customise, and build your dream home, including:

Full Architectural Building Plans

delivered in PDF & CAD files

✔ Ground Floor Plan
✔ Upper Floor Plan
✔ Roof Plan
✔ Full Site Plan
✔ Elevations
✔ Sections (if applicable)
✔ Window + Door Plans
✔ Stair Plans
✔ Electrical + Lighting Plans (if applicable)
✔ Builder-ready documentation used for our own DA submission and construction

Complete Interior Detail Plans

All the interior spaces — fully resolved, dimensioned, and drawn for construction. Delivered in PDF & CAD files

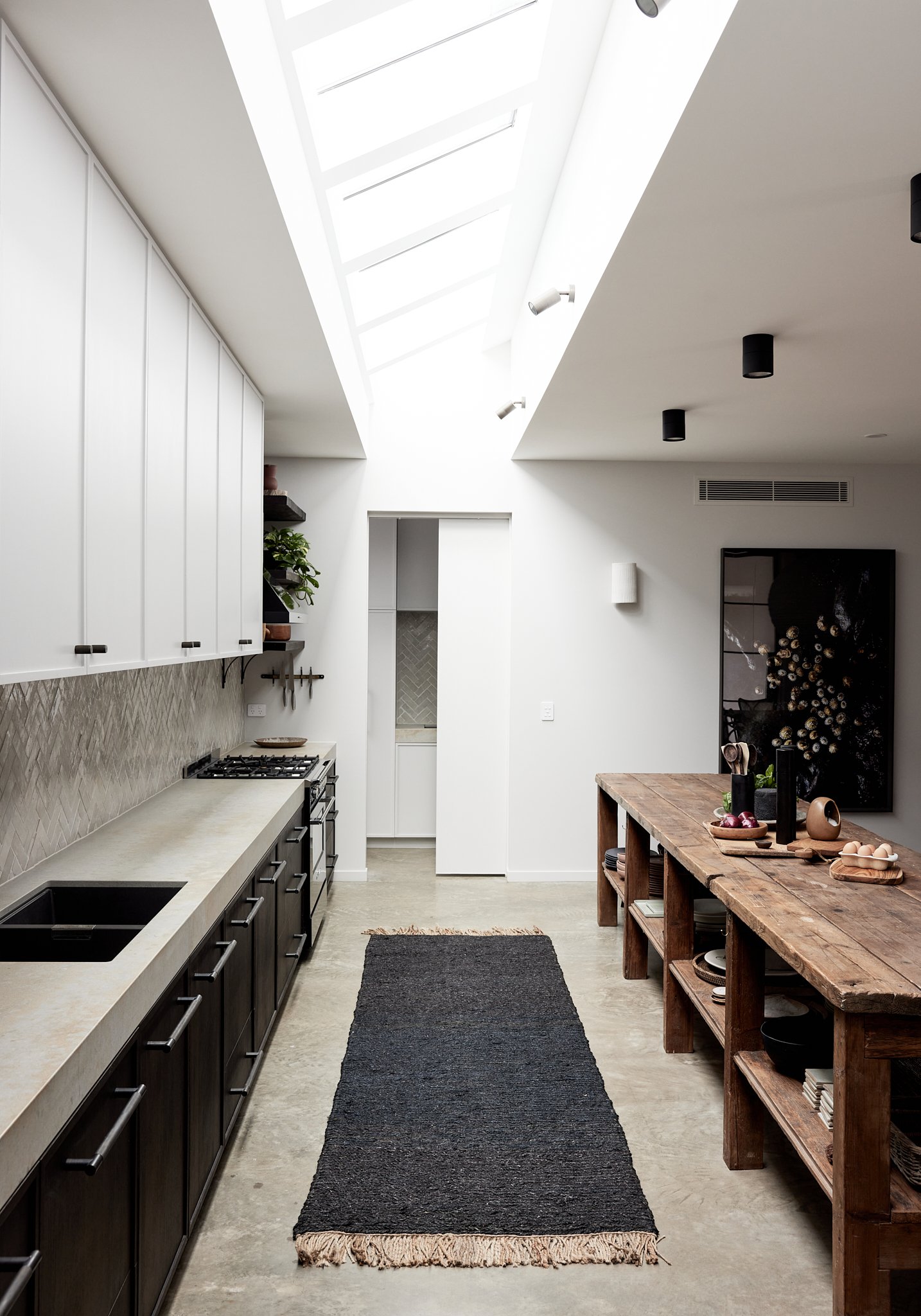

✔ Kitchen — detailed joinery, layouts, elevations
✔ Laundry — cabinetry, storage, appliance integration
✔ Bathrooms — all bathrooms within the home, including elevations + finishes
✔ Living Room — fireplace design, custom joinery, media wall, storage
✔ Home Office — integrated desk, storage, shelving
✔ Bedrooms — layouts, robe designs, storage solutions
✔ Robes & Wardrobes — full joinery drawings across all bedrooms
✔ Bunkrooms — custom-built bunk designs, layouts + detailing
✔ Rumpus/Secondary Living joinery

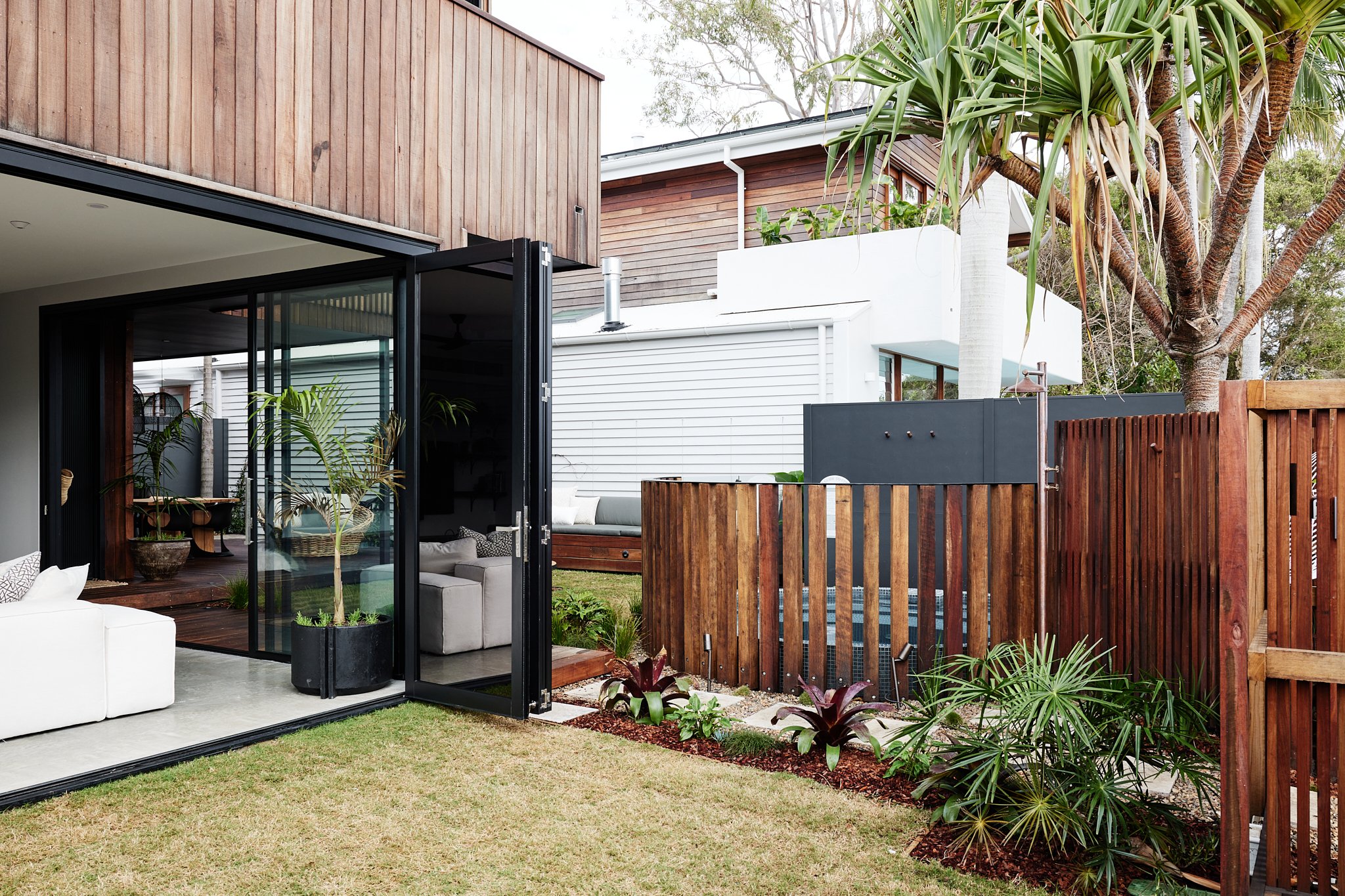

Exterior & Pool Plans

✔ Scaled landscape layout
✔ Pool plan + compliant fencing
✔ Outdoor kitchen / BBQ joinery
✔ Bench seating, bin enclosure + functional storage
✔ External elevations + detailing

This plan package is perfect for homeowners who want a beautifully designed, designer-level home without starting the entire design process from scratch.

It’s ideal if you:

• Love the look, layout and feel of SIKATA House and want to use it as the foundation for your own build

• Want a professionally resolved home design that includes both the architecture and interiors

• Are working with a draftsperson, builder or architect and need a detailed starting point

• Want to save time, reduce design overwhelm and avoid months of back-and-forth

• Need editable CAD + DWG files so the plans can be tailored to your site, orientation, council requirements and lifestyle

• Value thoughtful spatial planning, indoor–outdoor flow, functional joinery and a cohesive design vision throughout the whole home

This is for people who want more than a floor plan. It’s for those who want the thinking, detail and design direction behind a complete Designory home — ready to customise, adapt and bring to life.

Why You’ll Love It

Fast-track your entire project: Move straight toward DA submission and quoting, instead of spending months in design

Reduce costly revisions: Skip the back-and-forth with architects and designers

Customise confidently: Edit the included CAD files to suit your block, slope, orientation, and council requirements

One cohesive design vision: Architecture and interiors resolved together for perfect flow, style, and spatial logic

Designer-level detail: You’re buying the thinking, proportions, and functionality of an experienced design studio
